Tektronix / Oscilloscope Digital / TDS3012C

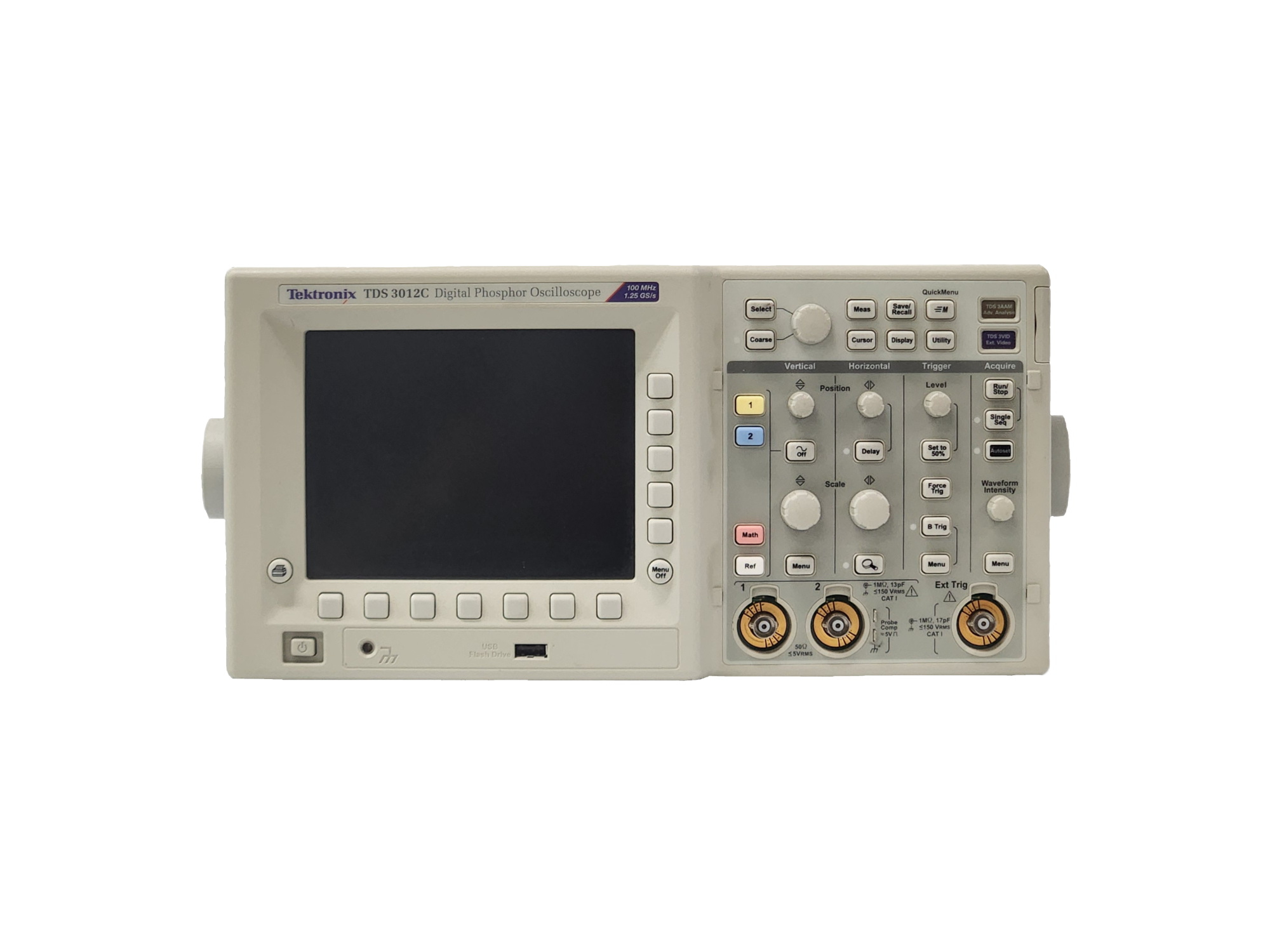

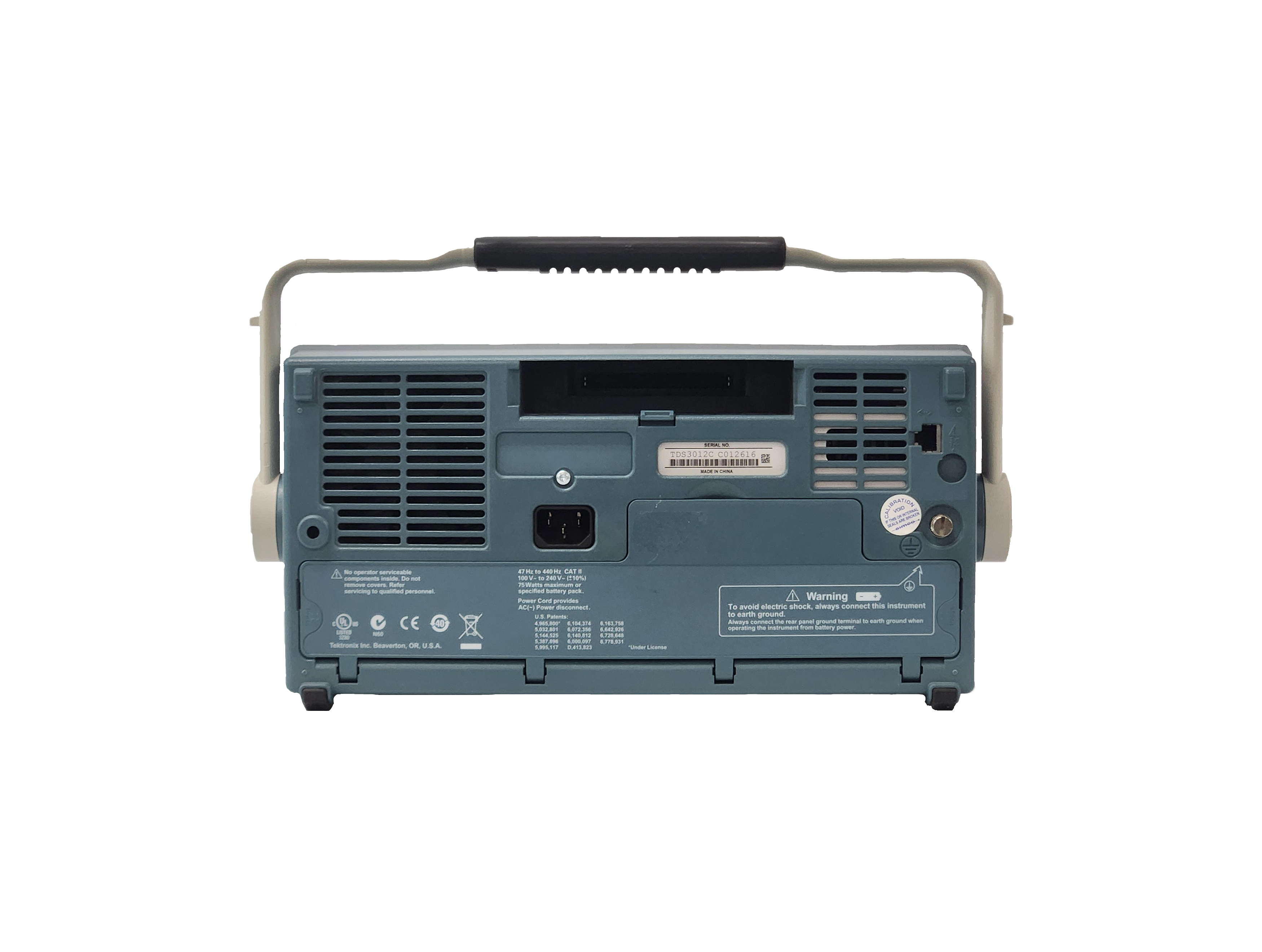

Tektronix TDS3012C는 텍트로닉스 사에서 제조한 100MHz 대역폭, 2개 채널, 최대 1.25GS/s의 샘플 속도를 제공하는 디지털 포스퍼 오실로스코프(DPO)입니다.

Bandwidth 100 MHz

Channels 2

Sample Rate on Each Channel 1.25 GS/s

10 K Point

Vertical Resolution 9bit Vertical Sensitivity, 1MΩ 1 mV/div to 10 V/div

Vertical Sensitivity, 50Ω 1 mV/div to 1 V/div

Input Coupling AC, DC, GND

Input Impedance 1MΩ in parallel with 13pF or 50Ω

DC Gain Accuracy ±2 Max

Input Voltage, 1MΩ 150 VRMS with peaks at ≤ 400V Max Input Voltage, 50Ω 5 VRMS with peaks at ≤ 30V

Position Range ±5 div

BW Limit 20 MHz 20 MHz, 150 MHz

Time Base Range 4 ns t o 10 s 2 ns to 10 s 1 ns to 10 s

Time Base Accuracy ±20 ppm over any 1 ms time interval

OPTION
