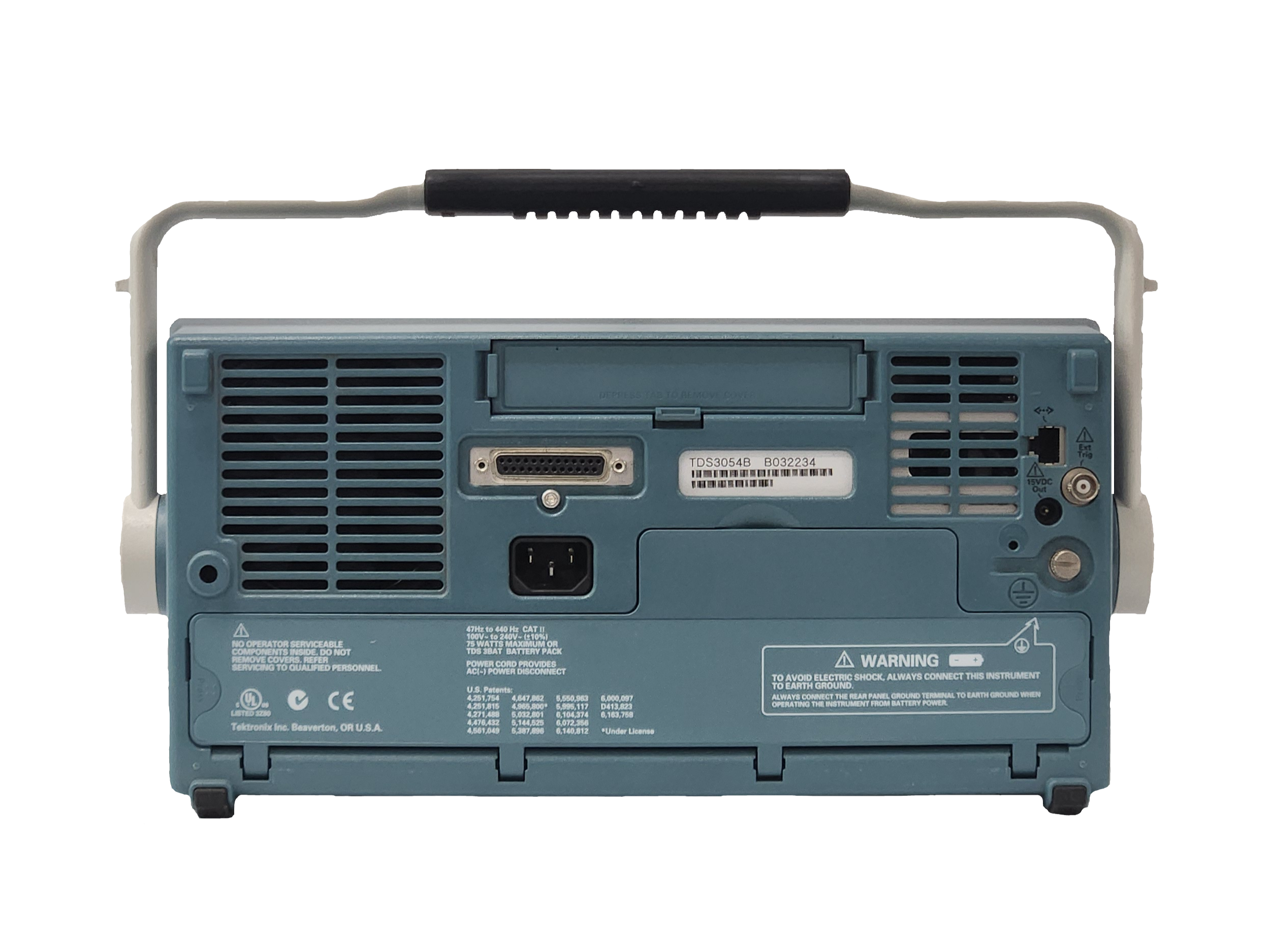

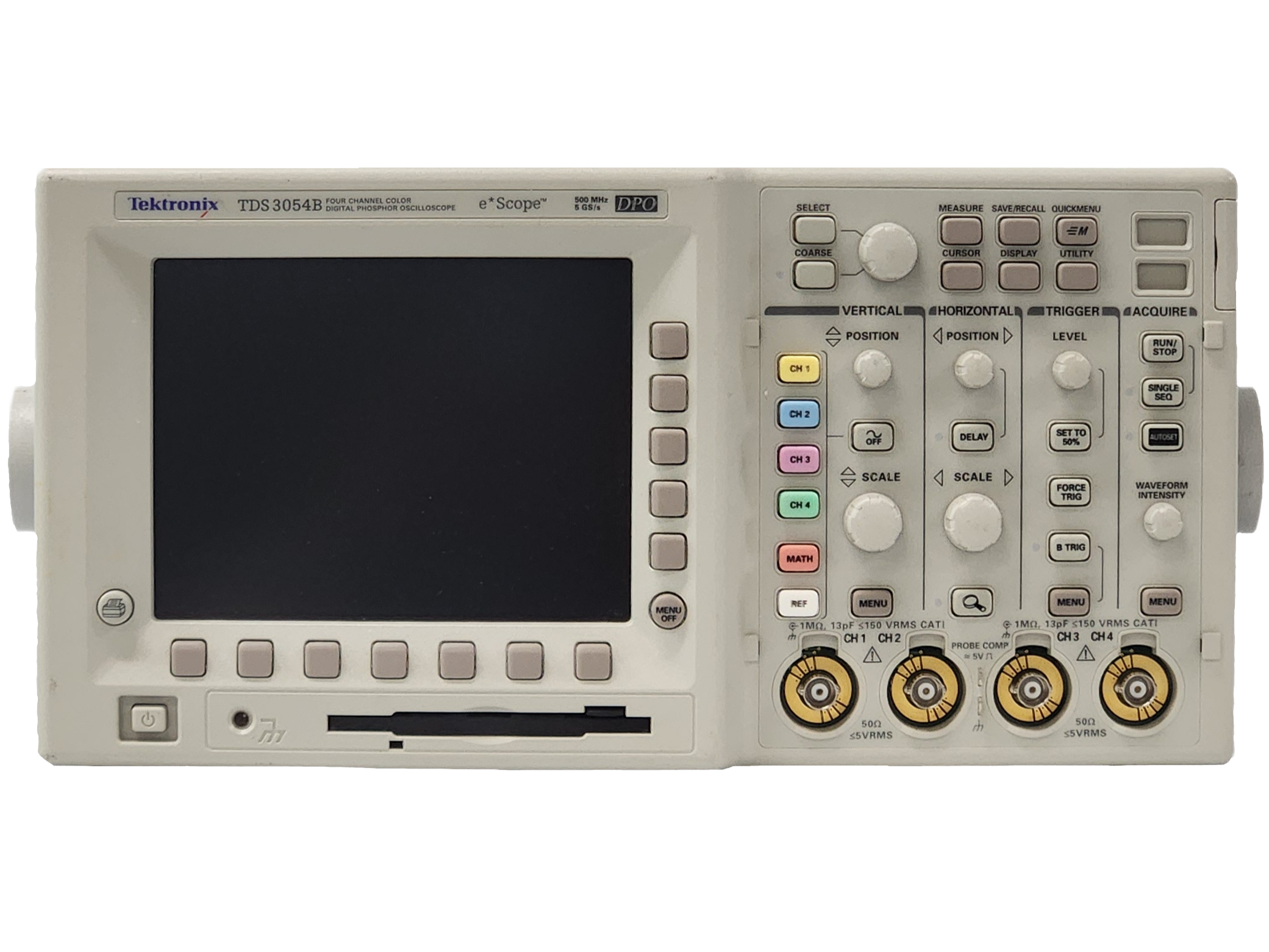

Tektronix / Oscilloscope Digital / TDS3054B

Frequency Range/ Bandwith 500 MHz Max.

Sample Rate 5 GS/s

Number of Channels 4 Ch

Vertical Sensitivity 10 V Min.

Vertical Sensitivity 1 mV/div

Record Length 10000 point

Type (D/A) Digital

500 MHz Bandwidth

Sample Rate on each channel: 5 GS/s

4 Channels

Full VGA Color LCD

Built-in Floppy Disk Drive For Easy Storage and Documentation

21 Automatic Measurements

Centronics Port Standard for Quick, Convenient Hardcopies

9-bit Vertical Resolution

Multi-Language User Interface

QuickMenu User Interface Mode for Quick, Easy Operation

Optional Modules for RS-232, GPIB, LAN, or VGA Communication Ports

Support for Active Probes, Differential Probes, and Current Probes that Provide Automatic Scaling and Units

Shipping weight: 12 lb
