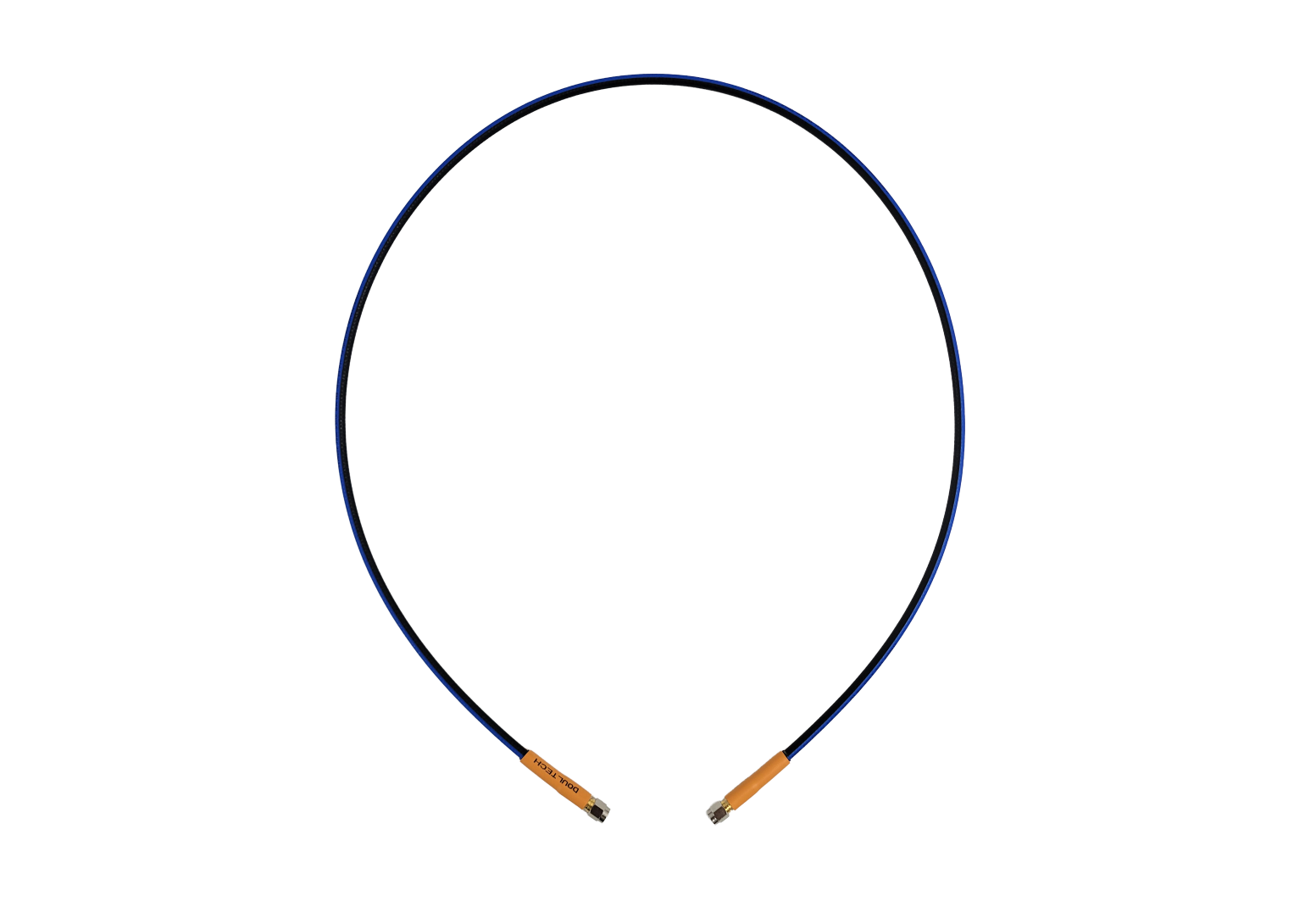

Doultech / Cable / DTca-EF400-SMA(m)-SMA(m)-1000mm

Connector Type: SMA(m)-SMA(m)



ENVIROFLEX Cable: LSFH Alternatives to RG Cables / 50 Ohm, 6 GHz, 105°C, Ø5 mm, RADOX® jacket

- Impedance: 50 Ω +/-2Ω

- Operating frequency: ≤ 6 GHz

- Capacitance: 94 pF/m

- Velocity of signal propagation: 70.3 %

- Signal delay: 4.74 ns/m

- Screening effectiveness: 70 dB at frequency 0.001 GHz ... 6GHz

- Insulation resistance: 10000000 MΩ*m

- Inner conductor resistance: 29.45 Ω/km

- Outer conductor resistance: 7.6 Ω/km

- Operating Voltage (at sea level): ≤ 2.5 kVrms

- Voltage Rating UL: 300 V

- Phase vs temperature: 10000 ppm within the temperature range -40 ... 100 °C

- Phase vs bending: 0.5 °/GHz

- Test voltage (50 Hz/1 min): ≤ 5 kVrms

OPTION

<길이당 판매가>
1m = 22,000원
2m = 34,000원
3m = 46,000원
4m = 60,000원
5m = 71,000원
6m = 88,000원
7m = 100,000원
8m = 111,000원
9m = 123,000원
10m = 141,000원
11m = 152,000원
12m = 164,000원
13m = 176,000원
14m = 187,000원
15m = 199,000원
