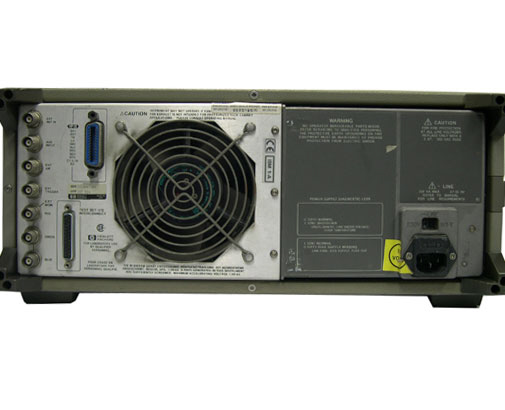

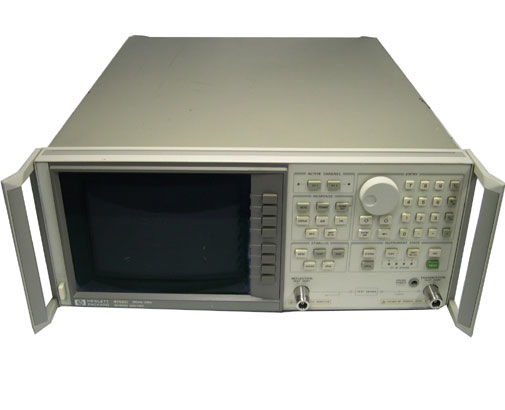

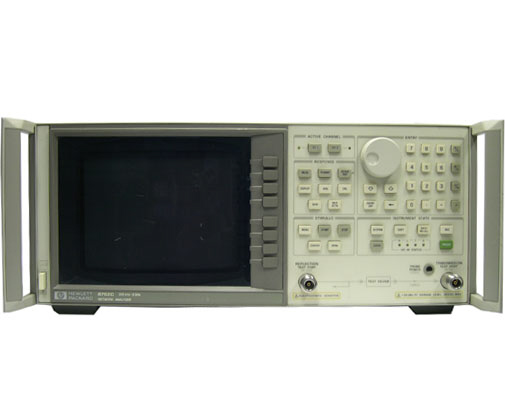

Agilent/HP / Network Analyzer / 8752C/003/004/010

Type : Vector
Integral Signal Source : Yes
Integral Test Set : T-R Parameter
Frequency Range(Standard) : 300 kHz ~ 1.3 GHz
Frequency Resolution : 1 Hz
Frequency Accuracy : +/- 10 ppm
Minimum Output Power : 0.00001 Watts
Maximum Output Power : 3.16228 mW
Power Resolution : 0.05 dB
Output Accuracy : 1 dB
Output Impedance : 50 ohms
Output Power Range : -20 dBm ~ +5 dBm
Sweep Range : 0.05 dB
No.of Receiver Channels : 2 ch
Receiver Minimum Frequency : 300 kHz
Receiver Maximum Frequency : 1.3 GHz
Maximum Dynamic Range : 110 dB
Input Connector Type : Type-N(f)

OPTION

003   3GHz extension to the frequency range -Refurbished Item-
006   6GHz extension to the frequency range -Refurbished Item-
010   Add time domain analysis capability -Refurbished Item-
1BN   Mil std 45662A calibration certificate -Refurbished Item-
1BP   Mil std 45662A calibration w/test data -Refurbished Item-
RMKT   Agilent refurbished product -Refurbished Item-
UK6   Commercial cal certificate w/test data -Refurbished Item-
