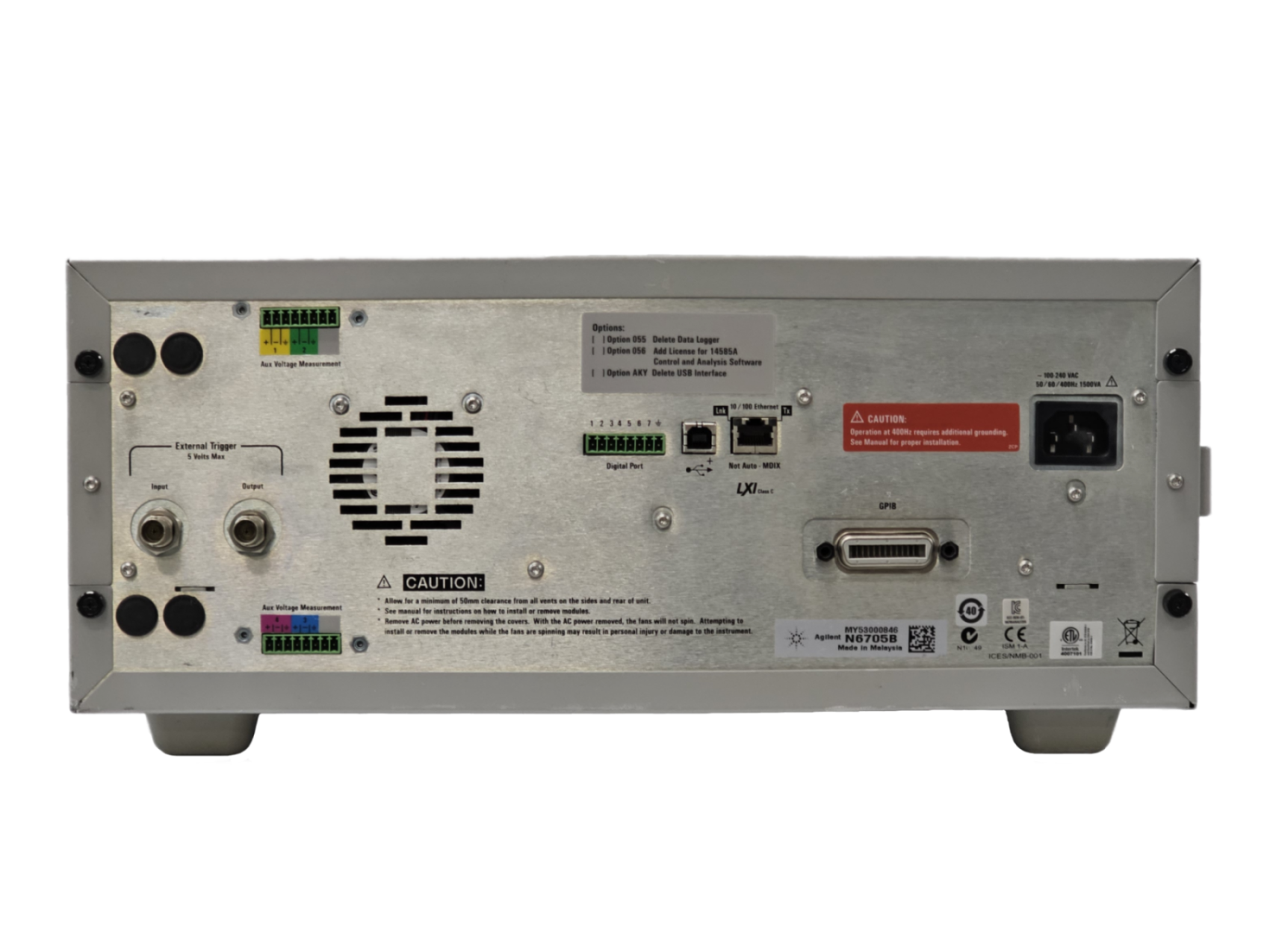

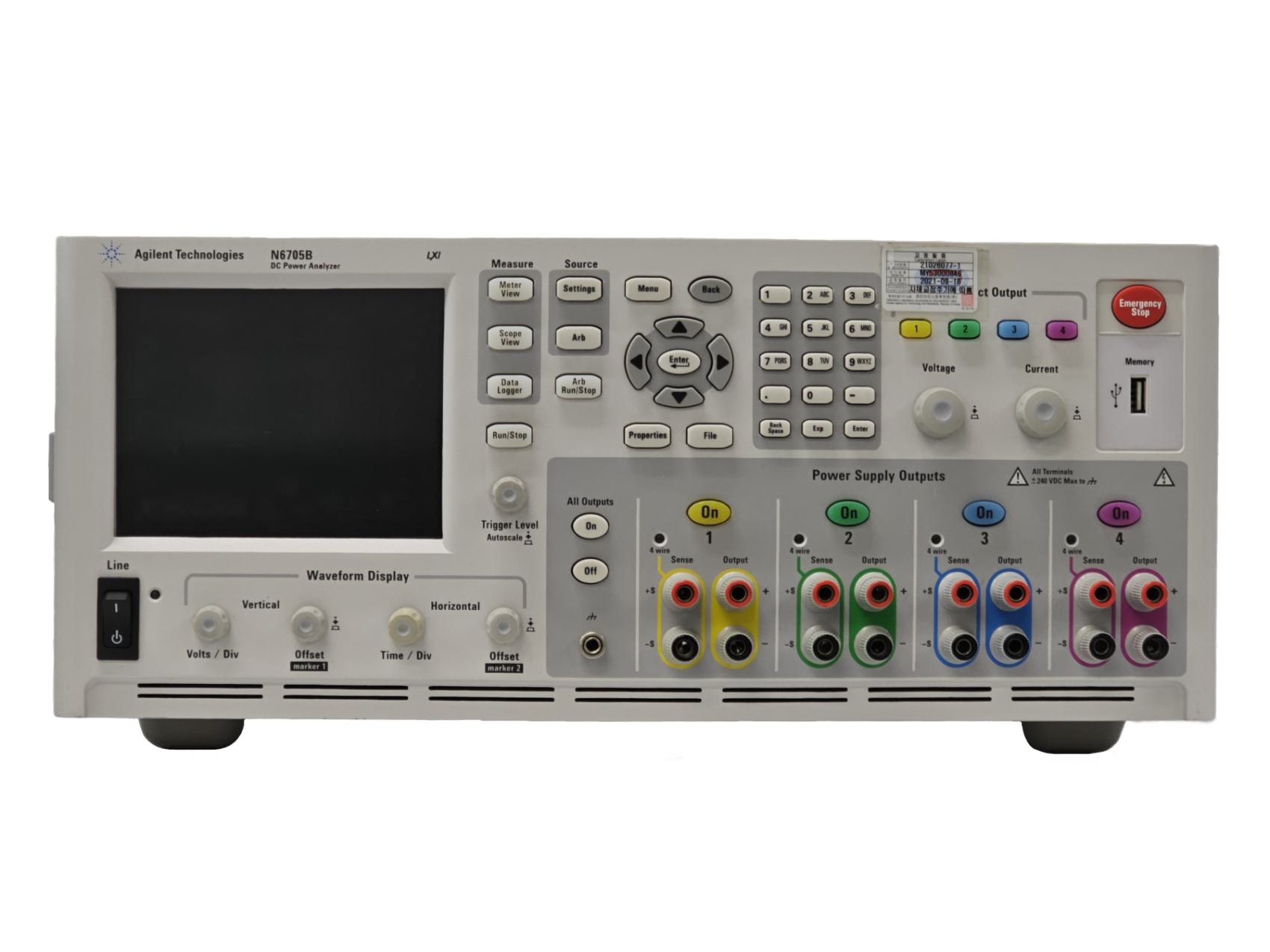

Agilent / DC Power Analyzer / N6705B

• 4-slot mainframe holds up to 600 W of total power and up to 4 modules. More than 30 DC power modules to choose from (modules ordered separately)

• Voltmeter accuracy: Up to 0.025% + 50 µV, up to 18 bits

• Ammeter accuracy: Up to 0.025% + 8 nA, up to 18 bits

• Arbitrary waveform generator function: Bandwidth up to 100 kHz, output power up to 500 W

• Scope function: Digitizes voltage and current at up to 200 kHz, 512 kpts, up to 18 bits

• Data logger function: Measurement interval from 20 µs to 60 s, max of 500 M readings per datalog

• 4 GB of non-volatile data storage for data log, scope traces, instrument settings
