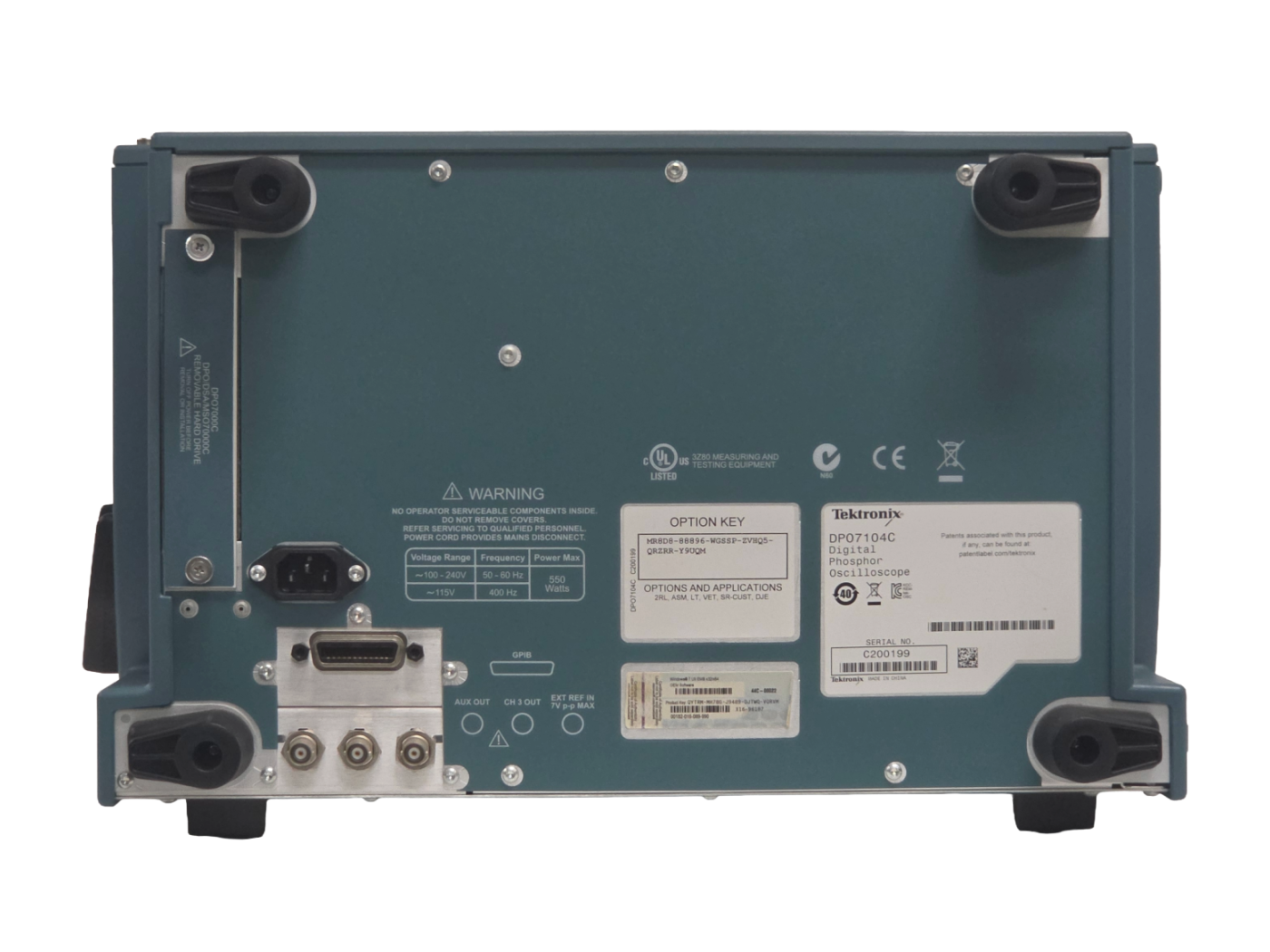

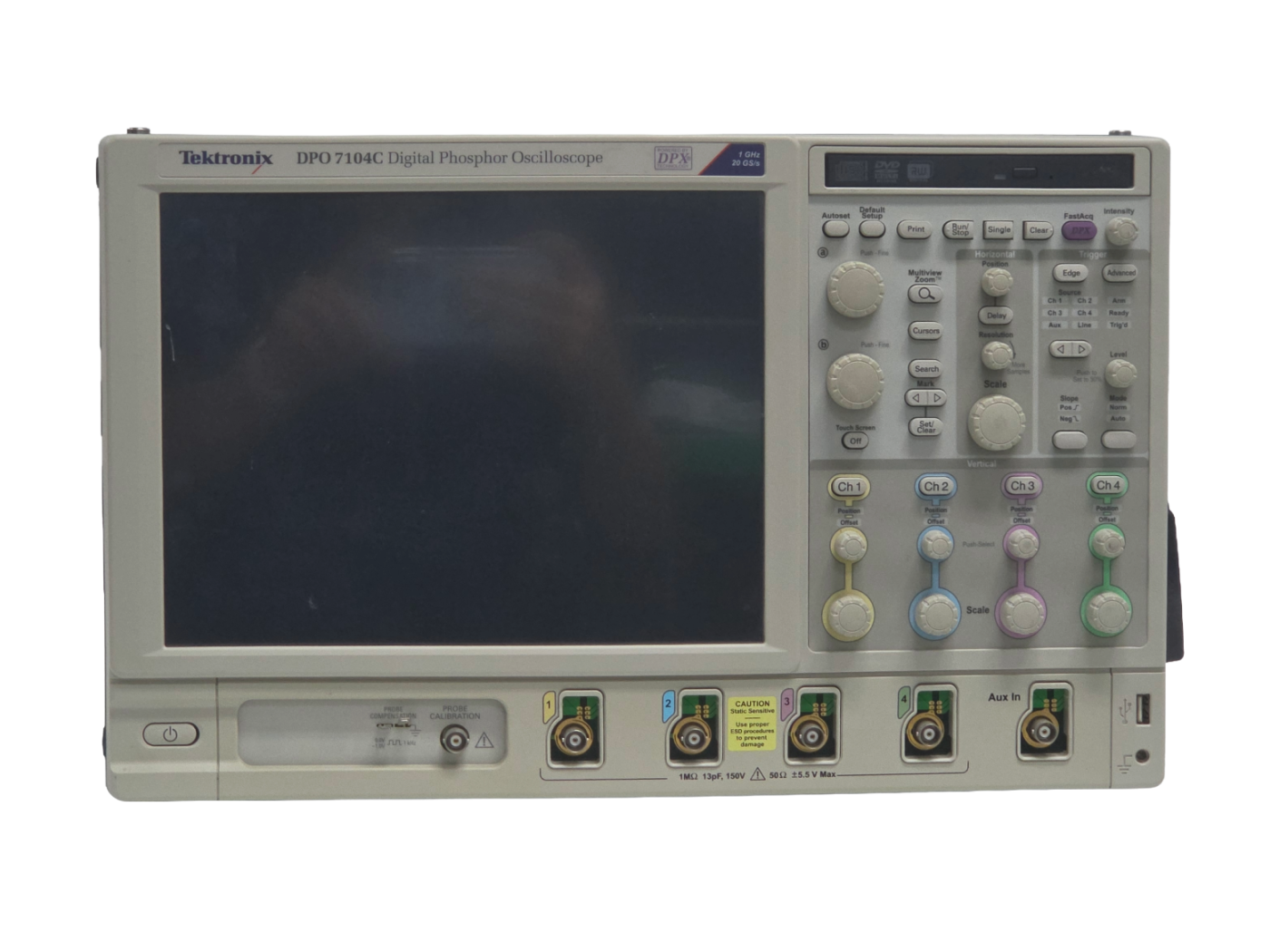

Tektronix / Oscilloscope Digital / DPO7104C/2RL/ASM/DJE/LT/SR-CUST/VET

Digital Phosphor Oscilloscopes
1 GHz, 5/10/20 GS/s (4/2/1 ch), 25 M record length, 4-channel digital phosphor oscilloscope

Input Channels : 4
Bandwidth : 1 GHz
Rise Time 10% to 90% (Typical) : 300 ps
Rise Time 20% to 80% (Typical) : 200 ps
DC Gain Accuracy : ±1% with offset/position set to 0
Bandwidth Limits : Depending on instrument model: 3.0 GHz, 2.5 GHz, 2 GHz, 1 GHz, 500 MHz, 250 MHz, and 20 MHz
Effective Number of Bits : 6.7 bits
(Typical, sine wave input at instrument bandwidth,
50 mV/div, 50 Ω Input Impedance,
maximum sample rate, 20k point
record length)





OPTION

2RL : Record Length Option 80 Meg Max 20M/CH
ASM : Advanced Search & Mark
DJE : Jitter and Eye Diagram Tools - Essentials
LT : Waveform Limit Testing
SR-CUST : Custom Serial Analysis Kit for Developers
VET : Visual Trigger and Search
