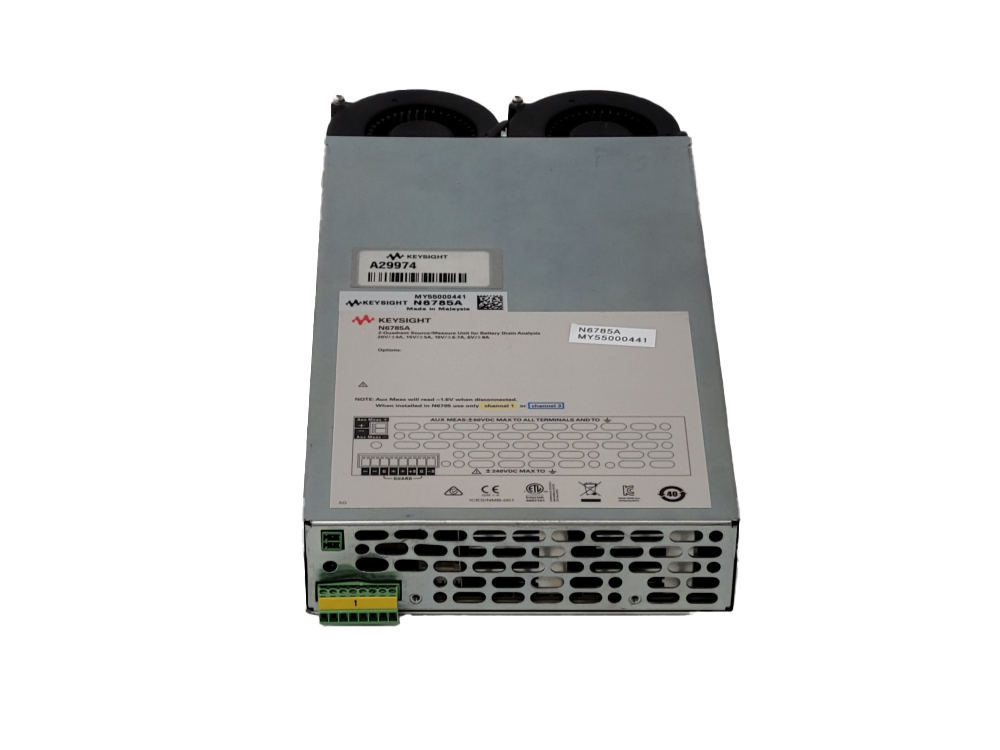

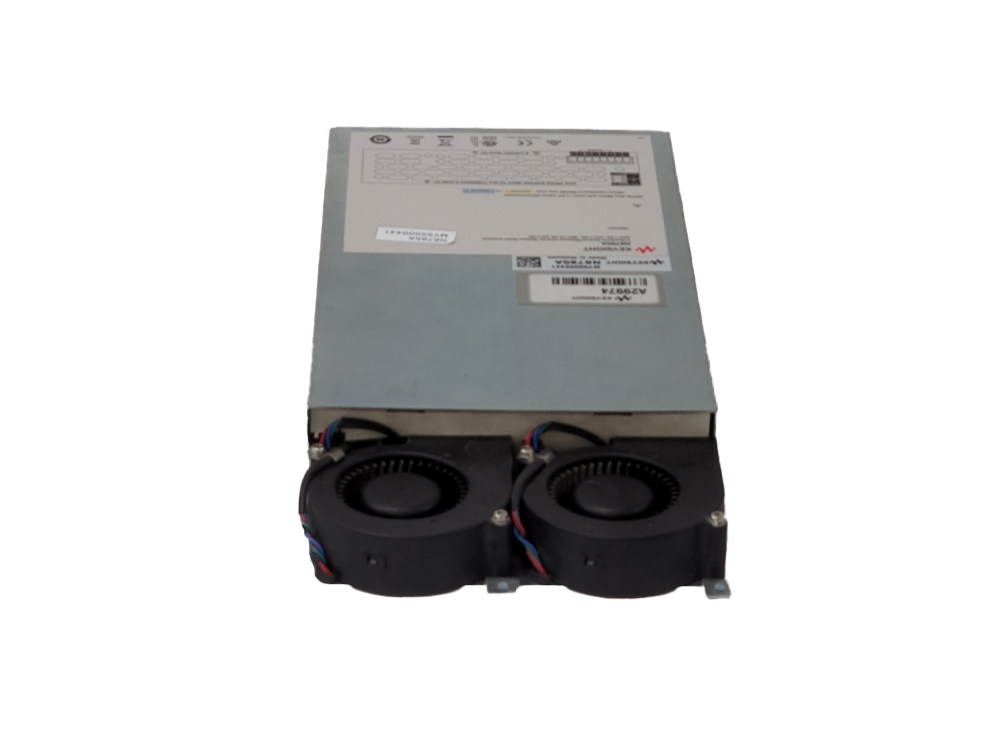

Keysight / 2-Quadrant Source / N6785A

* Output ratings
- Voltage: 20 V / 15 V / 10 V / 6 V
- Current: ± 4 A / ± 5 A / ± 6.7 A / ± 8 A
- Power: Up to 80 W

* Output voltage ripple & noise (PARD) from 20 Hz – 20 MHz
- CV peak-to-peak: 15 mV
- CVrms: 1.5 mV

* Programming accuracy (at 23°C ± 5°C after 30-minute warm-up. Applies from min. to max. program):
- Voltage, 20 V, 15 V, 10 V, and 6 V ranges: 0.025% + 1.8 mV
- Current, 4 A, 5 A, 6.7 A, and 8 A ranges: 0.04% + 1.4 mA

* Measurement accuracy (at 23°C ± 5°C)
- Voltage, 20 V range: 0.025% 1.8 mV
- Current, 8 A range: 0.04% + 1.5 mA
- Current, 100 mA range: 0.025% + 10 µA
- Current, 1 mA range: 0.025% + 100 nA
