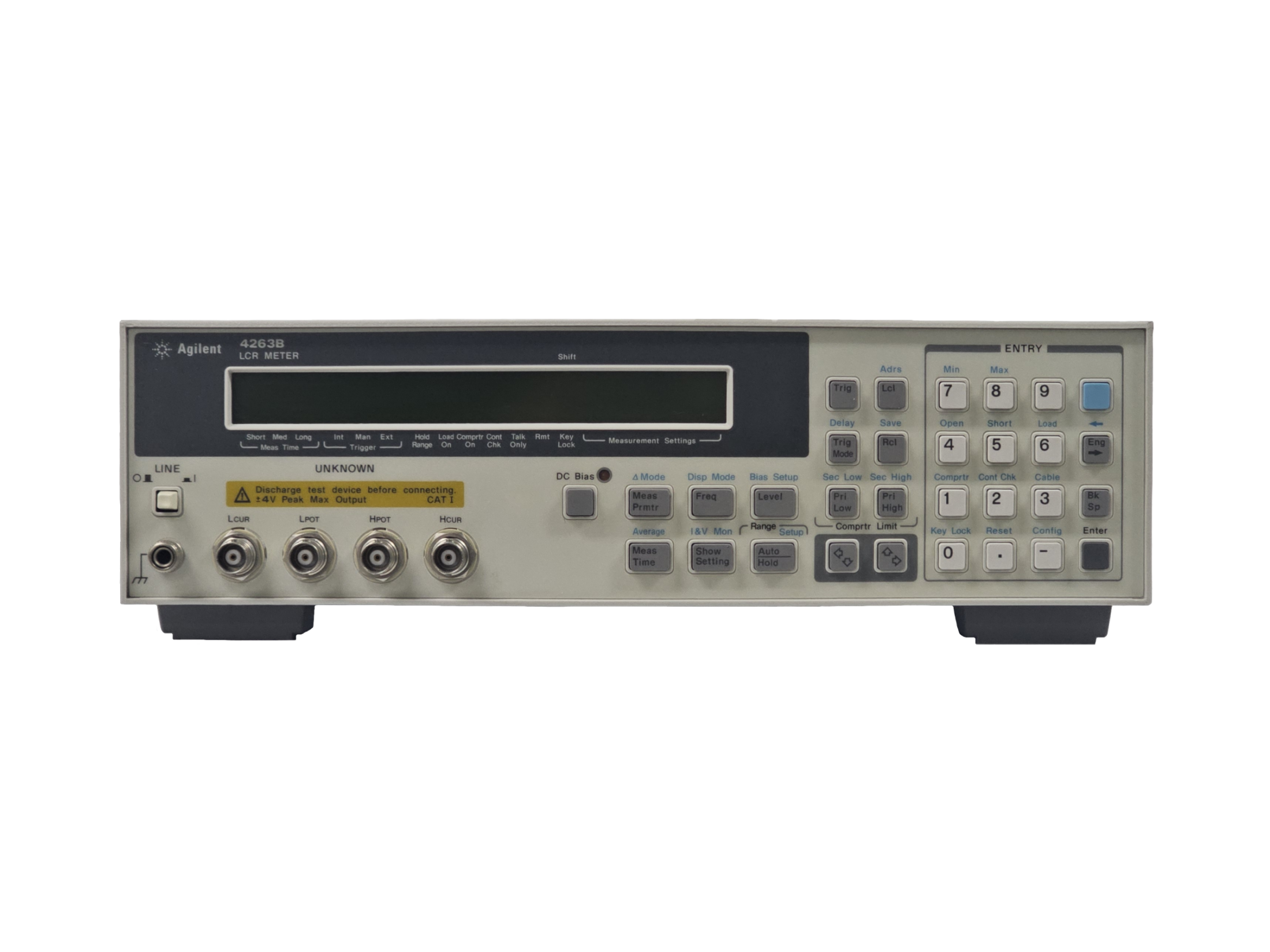

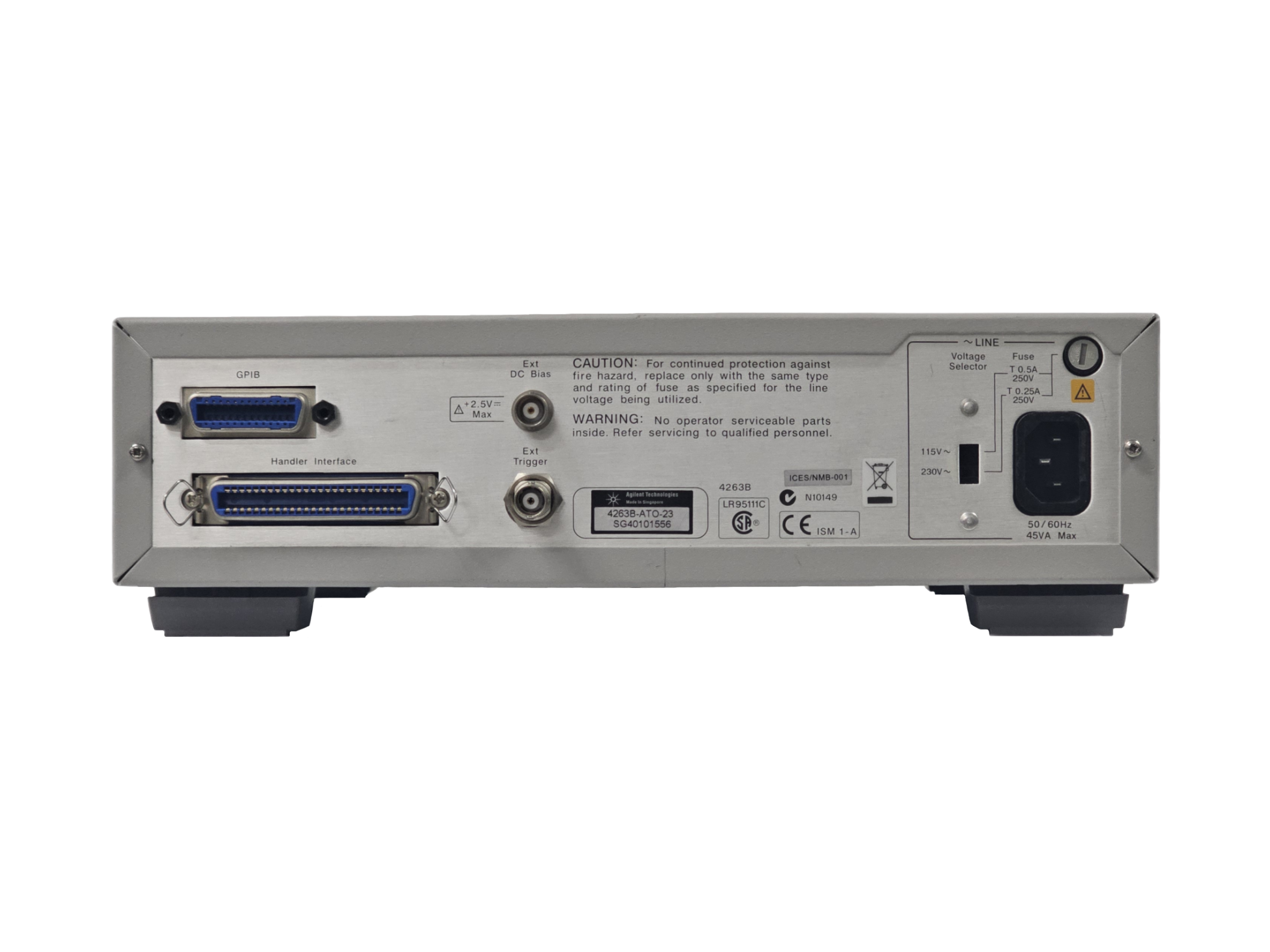

Agilent/HP / LCR Meter / 4263B


100Hz to 100KHz test frequency range

Measures |Z|, R, X, |Y|, G, B, C, L, D, Q, u + opt N/M/DCR

Rapid 25 ms measurements

Pass/fail testing

Built-in handler interface

	Basic Accuracy : 0.1%

	Capacitance Range : 1 pF ~ 1 F DC Bias/ HP-IB or Other : 10 nH / HP-IB & Ha

	Impedance Range : 1 mohm ~ 100 Mohm

	Inductance Range : 10nH ~ 100kH

	Voltage Range : 20 mV ~ 1 Vrms

OPTION

4263B-001 Add N/M/DCR Measurement Function
4263B-002 Add 20kHz Test Frequency
4263B-1A7 ISO 17025 compliant calibration
4263B-1CM Rackmount kit
4263B-1CN Handle kit
4263B-A6J ANSI Z540 compliant calibration
