GWInstek / Power Supply / PPH-1503

Features



Dual Range Output (0~15V/0~3A) or (0~9V/0~5A)

3.5 Inch TFT LCD Display

Constant Voltage and Constant Current Operation

Built-in DVM Measurement Function

High Measurement REsolution (1mV/0.1mA for 5A Range);(1mV/0.1uA for

5mA Range)

EXternal Relay Control Output On/Off

Sink Current Capability (Maximum:2A)

Digital Panel Control

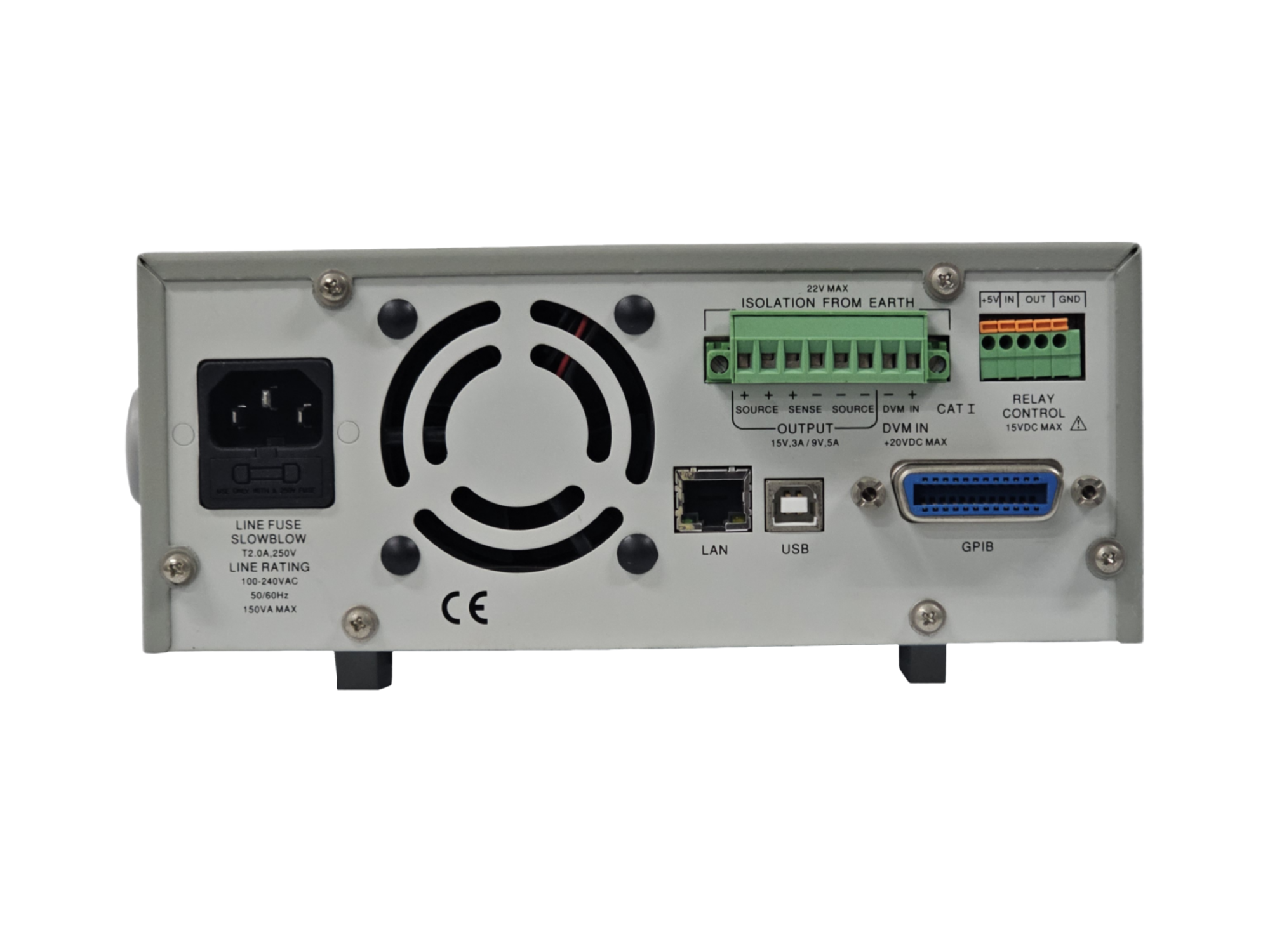

Selectable Output and Input (DVM) Ports From Front or Rear Panel

Key Lock Function

5 Sets of Preset Memory Including Power Output ON/OFF States

High Speed Transient Recovery Time(<40us within 100mV ; <80us within

20mV)

OVP/OCP/OTP Protection to Prevent DUT Damage

Standard Multiple Interfaces: USB / LAN /GPIB

Labview Driver and PC Remote Control Software
