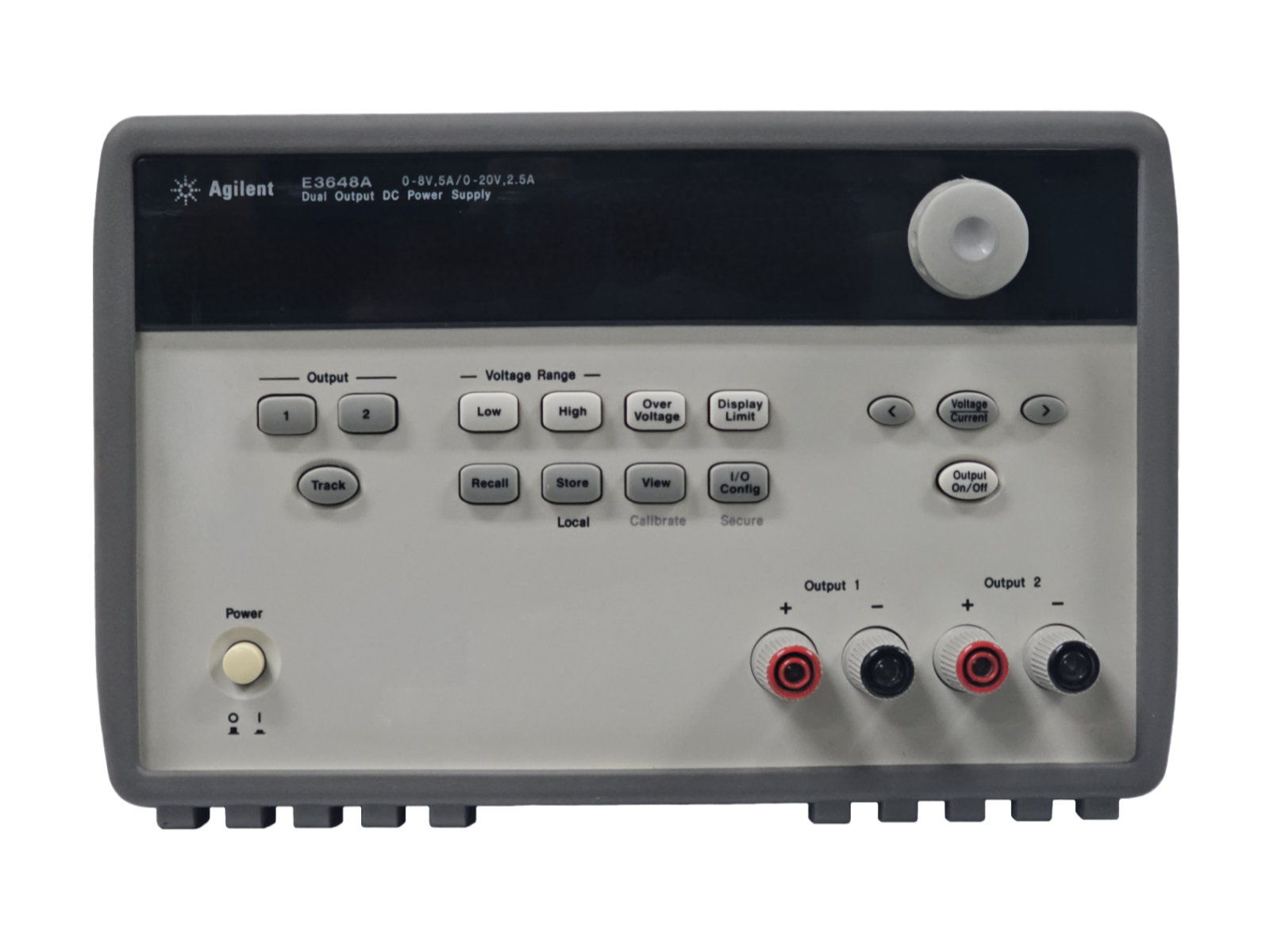

Keysight / Agilent E3648A 100W Dual Output Power Supply Two 8V, 5A or 20V, 2.5A

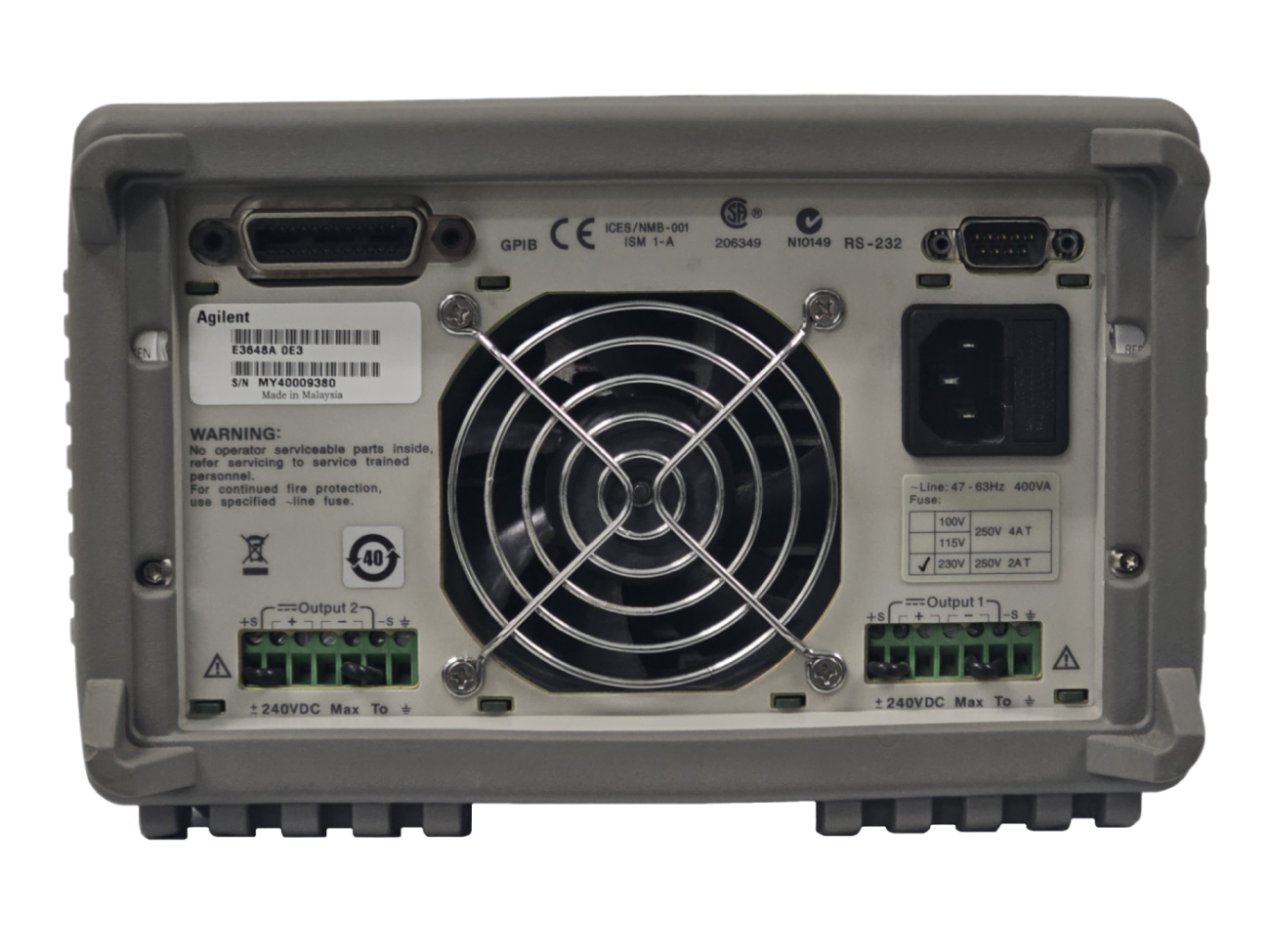

The 90W, multiple output E3648A is a clean, reliable power supply for general purpose applications, and combine convenient benchtop capabilities with flexible system features in a compact, multi-output package. The E3648A provides a small, compact size for bench and system use; low output ripple and noise; and built-in measurements and basic programmable features with GPIB and RS232 interface.

Features:
Range 1: 0 to 8 V / 5 A
Range 2: 0 to 20 V / 2.5 A

Programming Accuracy (@ 25°C ±5°C), ±(% output + offset)
Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
Current: <0.2% + 10 mA

Ripple & Noise 20 Hz to 20 MHz
Normal Mode Voltage: <5 mVpp / 0.5 mVrms
Normal Mode Current: <4 mArms
Common Mode Current: <1.5 uArms

Readback Accuracy (@ 25°C ±5°C), ±(% output + offset)
Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
