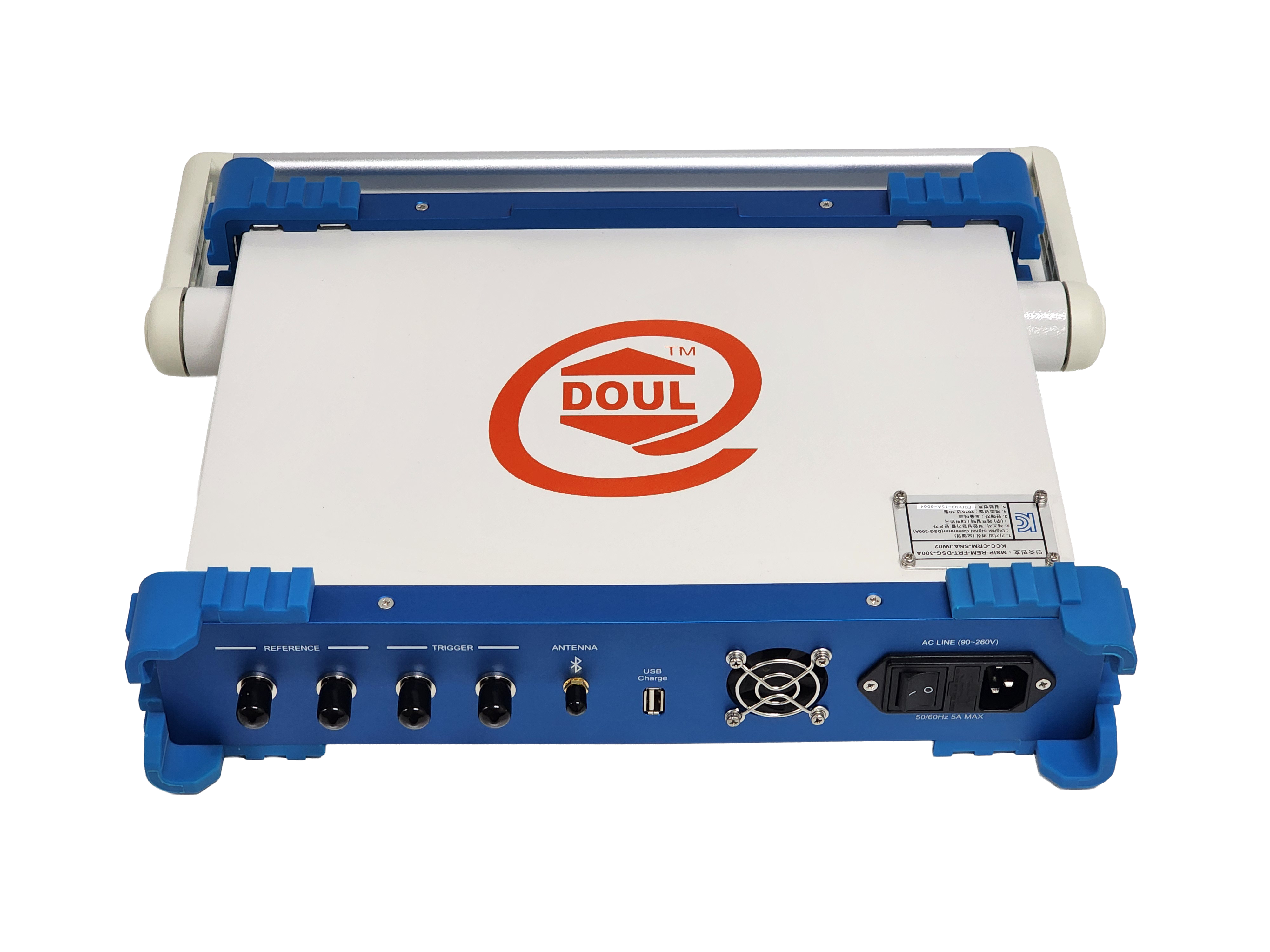

Doultech / Signal Generator / DSG-300A

(재고할인제품) 3 Port Output Signal Generator (***Option / Standard : 1 port)

Frequency Range: 70MHz to 3GHz CW, CDMA, W-CDMA, LTE Modulation --------------------------------- Specification Model Digital Signal Generator Color Blue + WHITE Size 350.6mmX295mmX63.6mm Weight 3.7Kg 이하 Typical Operating Current Max. 300mA Operating Temperature -0 ~ +40 Storage Temperature -20 ~ +60 Debug Port USB, Bluetooth, Ethernet (GPIB ***Option) LED RF Out On/OFF,Status,SPF Master / Slave Power 100V to 240V(AC), 50Hz to 60Hz Optic OUTPU 2port CPRI Protocol(SFP0/SFP1) (***Option) RF OUTPUT 3port 독립된 3Port의 Output 제공 Frequency Range 70MHz~3GHz RF Out Level 범위 -0dBm ~ -75dBm, 0.25dB Step Level Offset 범위 0dBm ~ 30dB Modulation 지원 CW, CDMA, W-CDMA, LTE Reference Port 10M IN/OUT BNC (Female), 0dBm, 50Ω TRG. IN/OUT BNC (Female), 50Ω Debug Port USB IN/OUT GUI, CLI Standard A Type Bluetooth IN/OUT GUI(APP 제어) ETHERNET IN/OUT 100 Base-T EVM LTE : 1.0%이하(2.3G이하) , WCDMA: 1.5%이하(2.3G이하) LTE : 1.2%이하(2.5G이하) , WCDMA: 1.7%이하(2.5G이하) LTE : 1.7%이하(3.0G이하) , WCDMA: 2.0%이하(3.0G이하) (주파수 대역에 따라 상이 함) @ Output power -10dB ACLR MIN 52dBm @ Output power 0dB

OPTION

Product Info

  • Manufacturer : Doultech
  • Product : Signal Generator
  • Model : DSG-300A
  • Link : none
  • Tel Service : 02-3666-6341
  • File-1 : none
  • File-2 : none
  • File-3 : none
  • UserPrice : ₩7,500,000
  • RentalPrice :₩750,000
