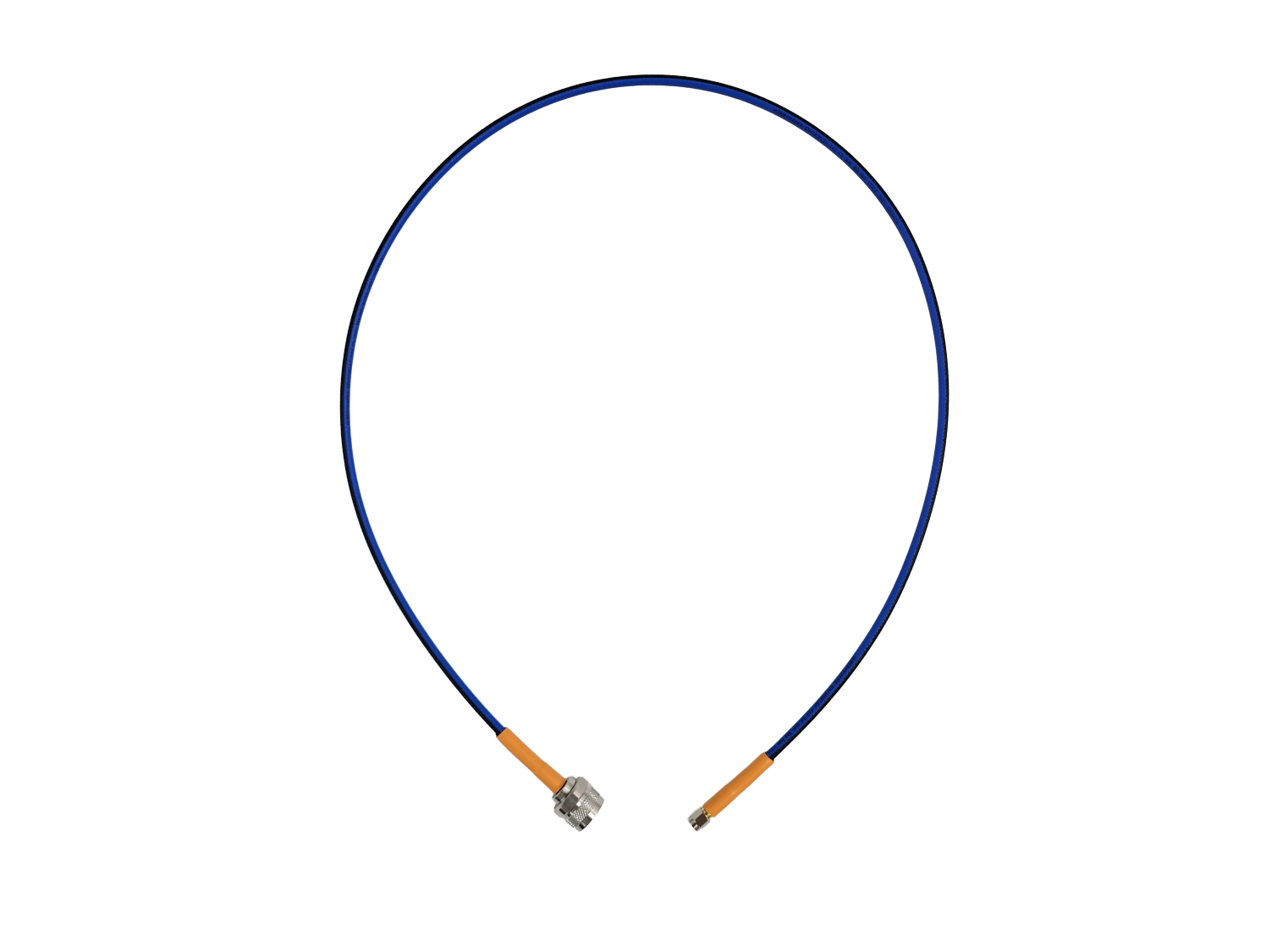

Doultech / Cable / EF400/11N/11SMA/1000
N(m)-SMA(m) /m당 \8,000 +
EF400 spec
Operating Frequency     ≤ 6 GHz
Nom. attenuation Values and graph see below Coefficient a 0.4020
    Coefficient b 0.1420
CW Power Values and graph see below   225 W
Impendance     50 ± 2 Ω
Capacitance     94 pF/m
Propagation velocity     70.30 % of c
Signal delay     4.74 ns/m
Phase stability vs. Temp. (abs./rel.)
-40

100

Phase stability vs. bending (abs.)
0.50
 360 40
Insulation resist     > 10000000 MΩm
Test Voltage     5 kVrms
Operating Voltage at sea level   2.50 kVrms
Inner Cond Res DC typical
29.45 Ω/km

Outer Cond R. DC typical   7.60 Ω/km
OPTION

Product Info

  • Manufacturer : Doultech
  • Product : Cable
  • Model : EF400/11N/11SMA/1000
  • Link : none
  • Tel Service : 02-3666-6341
  • File-1 : none
  • File-2 : none
  • File-3 : none
  • UserPrice : ₩20,000
  • RentalPrice :₩3,400
