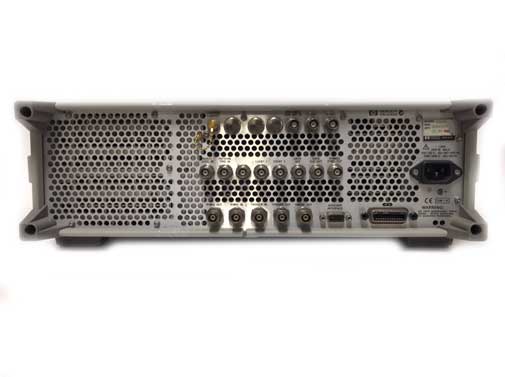

Agilent/HP / Signal Generator / E4433B/1E5


250 kHz to 4 GHz frequency range

+13 to –136 dBm output power

AM, FM, PM, pulse and digital modulation

Internal modulation source

-105dBc phase noise (1GHz carrier, 20KHz offset)

RF modulation bandwidth up to 35 MHz

Optional dual arbitrary waveform generator and/or real-time I/Q baseband generator

40 MHz sample rate and 14-bit I/Q resolution

1 Msample (4 MB) memory for waveform playback and

	1 Msample (4 MB) memory for waveform storage

Custom digital modulation (>15 variations of FSK, MSK, PSK, and QAM),

	AM, FM, phase modulation, pulse modulation, and step/list sweep (frequency and power)

OPTION

E4433B - 100 - MULTICHANNEL W-CDMA PERSONALITY
E4433B - 101 - MULTICHANNEL CDMA2000 PERSONALITY
E4433B - 1CM - RACK MOUNT
E4433B - 1CN - FRONT HANDLES
E4433B - 1CP - RACK MOUNT (INC HANDLES)
E4433B - 1E5 - HIGH STABLITY TIMEBASE
E4433B - 1E6 - HIGH PERFORMANCE PULSE MODULATION
E4433B - 1EM - REAR PANEL CONNECTIONS
E4433B - 200 - REAL-TIME 3GPP W-CDMA PERSONALITY
E4433B - 201 - REAL-TIME CDMA2000 PERSONALITY
E4433B - 202 - EDGE PERSONALITY FOR REAL-TIME BB GENERATOR
E4433B - 300 - BASEBAND BERT EXTENSION FOR OPTION UN7
E4433B - 404 - SIGNAL STUDIO FOR 1XEV-DO
E4433B - 406 - SIGNAL STUDIO FOR BLUETOOTH
E4433B - BAH - GSM MEASUREMENT PERSONALITY
E4433B - ES1 - NEWER FIRMWARE FITTED THAN AT MANUFACTURE
E4433B - H10 - LOW PHASE NOISE (SPECIAL OPTION)
E4433B - H97 - TRIAL WCDMA FOR NODOCO
E4433B - H99 - IMPROVED ACP PERFORMANCE
E4433B - UN3 - ADD BASEBAND I/Q GENERATOR WITH 1 MBITS OF PATTERN RAM
E4433B - UN5 - MULTICHANNEL IS-95 CDMA PERSONALITY
E4433B - UN6 - HIGH PERFORMANCE PULSE MODULATION
E4433B - UN7 - INTERNAL BIT ERROR RATE ANALYZER
E4433B - UN8 - REAL TIME I/Q BASE BAND GENERATOR
E4433B - UN9 - ADD 7M RAM TO UN8
E4433B - UNA - ALTERNATIVE TIMESLOT POWER LEVEL CONTROL
E4433B - UNB - HIGH POWER WITH MECHANICAL ATTENUATOR
E4433B - UND - INTERNAL DUAL ARBITRARY WAVEFORM GENERATOR
