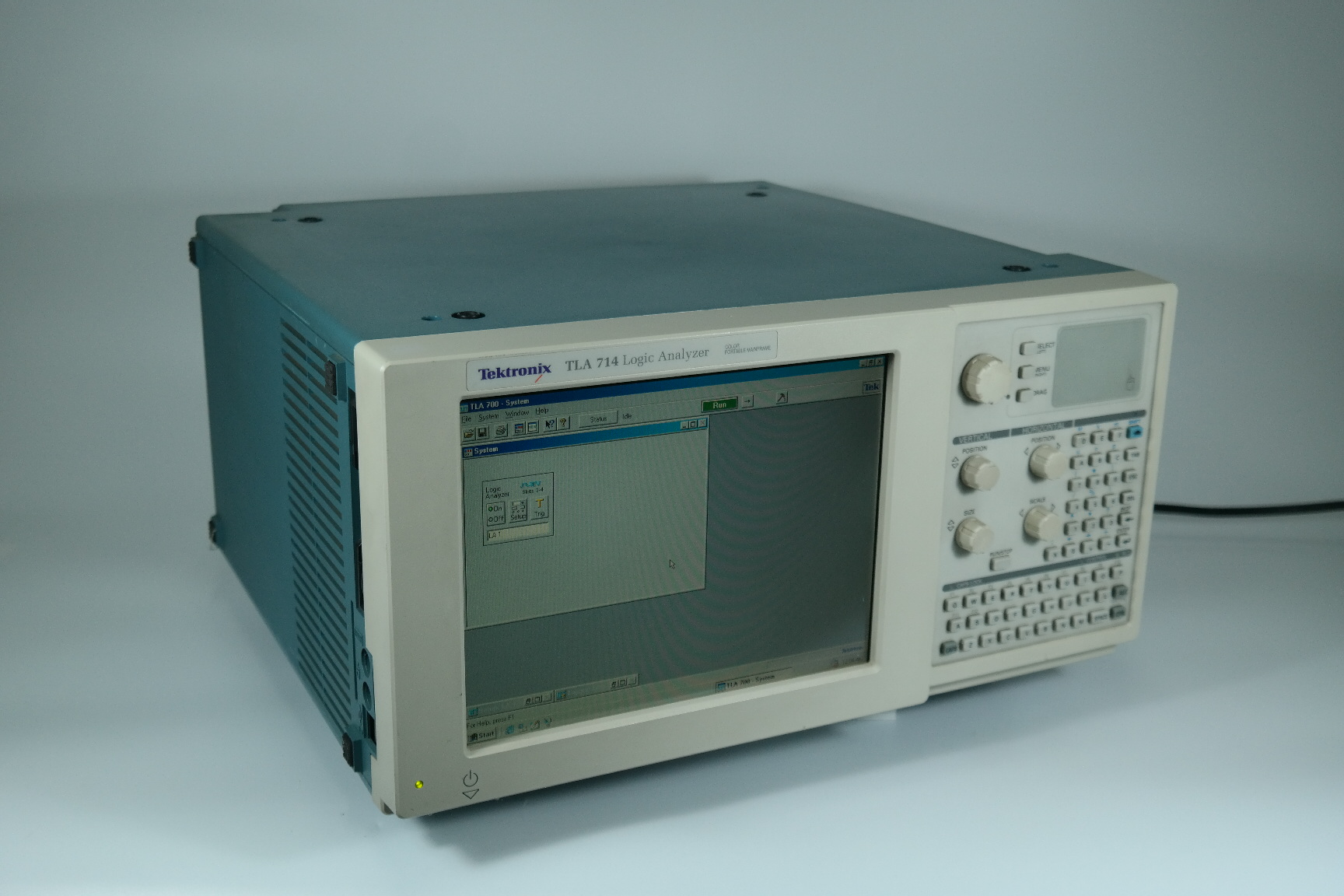

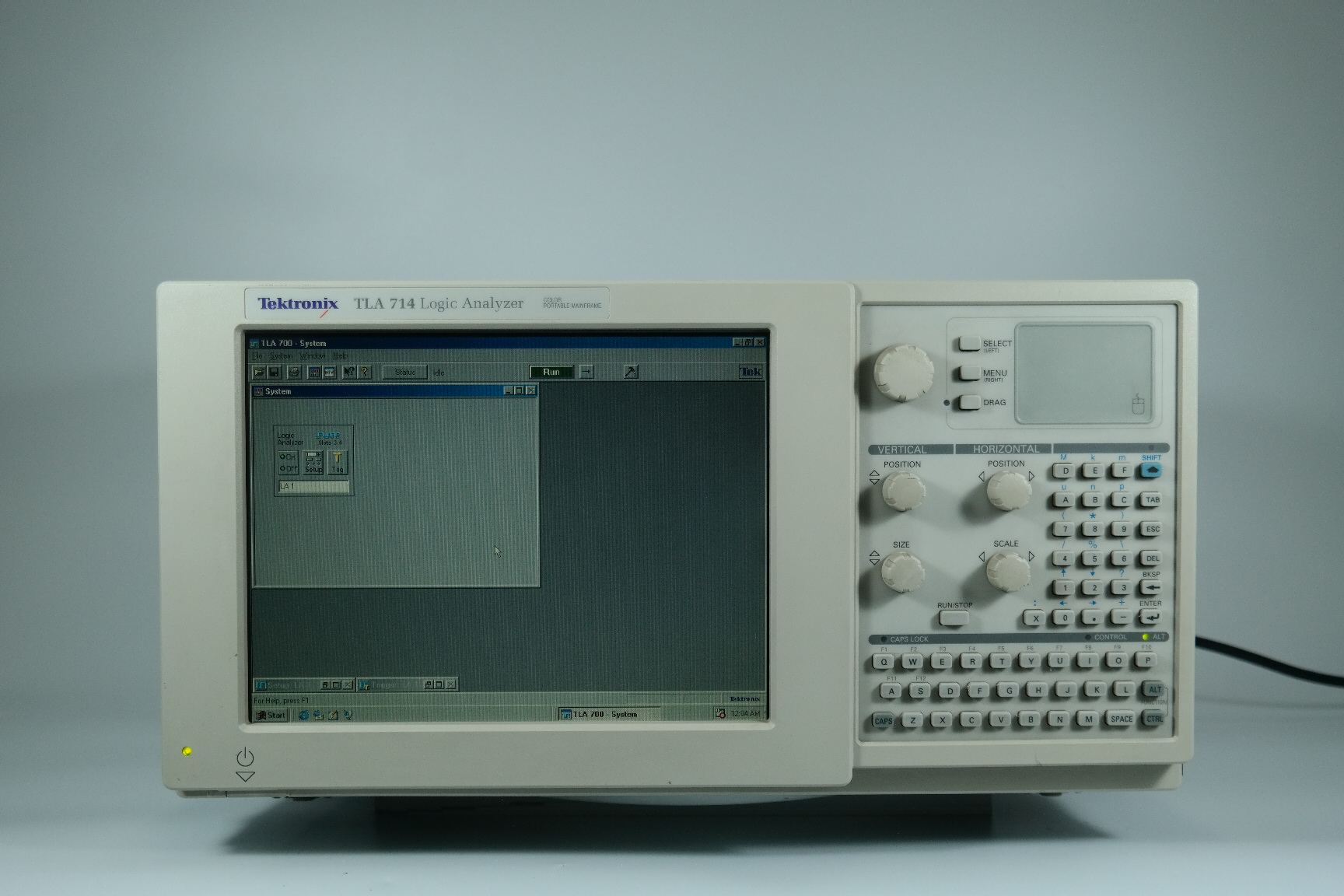

Tektronix / Logic Analyzer / TLA714

Features:

Holds 4 single-wide or 2 double-wide modules

Instrument modules include logic analyzers, pattern generators and digitizing oscilloscopes

Up to 200 MHz state acquisition with 400 MHz data rate for advanced processors and buses

500 MHz deep timing analysis with up to 128 Mb per channel

MagniVu™ technology provides 500 ps timing resolution on all channels all the time through the same probe

Simultaneous state and high speed timing analysis through the same probes pinpoints elusive faults

Broad processor and bus support universal source code support for correlating high-level language source with real-time trace

Performance analysis support for optimizing target system remote control using Microsoft

COM/DCOM technology supports advanced data analysis

Microsoft Windows PC platform provides familiar user interface with network connectivity

?

OPTION
