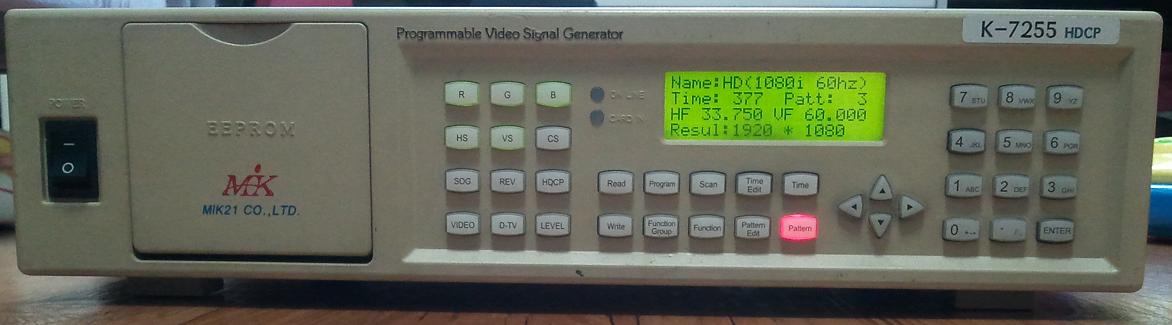

�삎紐� : VIDEO SIGNAL GENERTOR
�젣議곗궗 : MIK21
紐⑤뜽紐� : K-7255HDCP 50/60HZ/601mA
Video Pattern Generator濡� �뜑�씠�긽 �궗�슜�븯吏� �븡�븘�꽌 �뙋留ㅽ빀�땲�떎
媛�寃⑹�� 30留뚯썝 �삁�긽�빀�땲�떎留� 理쒕���븳 留욎떠 �뱶由ш쿋�뒿�땲�떎.
瑗� 援ъ엯�븯�떎遺꾨쭔 010-3890-0456�쑝濡� �뿰�씫 諛붾엻�땲�떎.
媛먯궗�빀�땲�떎.
�젣�뭹�꽕紐� �궗�씠�듃
http://www.mik21.com/sub/kor/product/product2.html?
product_code=23&cate_code=0101
HDCP
250MHz Analog Video rate
DVI-I 165MHz digital output
NTSC, PAL, SECAM Composite and S-Video output
SCART
D-TV (TV) Signal output Capability : YPbPr output
Audio R, L output
Built-in 100 Timing formats
Large custom memory: 300 Timing, 200 Pattern
200 Function group, 100 Scan group
2048 x 2048 graphic display size
All timing parameters are fully programmable
Power saving mode test capability
Easy and variable pattern edit function
RS-232C interface PC Edit:
Pattern, Timing, Scan, Function System Program download
ESD protection circuit
PIP: Analog & TV Signal output at the same time
ANALOG OUTPUT
Display Size 2048X2048
Pixel Rate Range 8MHz~250MHz / Error of less than 25ppm
Video Level R, G, B (75 ohms) 0~1000mV programmable / 1 mV step
Sync on Green 0.3VFix On/Off Support
Output connector BNC, D-Sub 15-pin, DVI-I Analog
Protection buffered by 75-ohm isolation
HORIZONTAL TIMING
Total Pixels 100~4096 pixels resolution / 1 Pixel resolution
VERTICAL TIMING
Total Pixels 100~4096 lines (non-interlace)
100~2047 lines (interlace) / 1 lines resolution
SEPARATE SYNC
HS, VS, CS, TTL Level (4.5V)
DVI(TMDS) Output
Pixel Rate Range Single link : 25MHz~165MHz
HDCP Support HDCP V.1.0 Production-Key
Compliant DVI 1.0 specification
Video Signal Type RGB
Sampling Mode 4:4:4
Output Connector DVI-I
TV FORMAT
Output Mode NTSC M, J NTSC 443 PAL B,D,G,H,I SECAM
Subcarrier Frequency 3.579545 4.433618 4.433618 For=4.40625 MHz
Fob=4.25
Subcarrier Stability 짹5 Hz
Video Output Composite (BNC), S-Video
Single : CVBS Connector BNC
Single : Y/C Connector 4-pin mini DIN
Burst On/Off (NTSC, PAL)
D-TV FORMAT
Single Y, Pb, Pr Connector BNC
Time 480P, 720P, 1080i
Timing Progressive Mode Frame Rate (Hz) Interlace Mode Frame Rate (Hz)
Standard
1920X1080 60P 60 60i 30 SMPTE 274
59.94P 60 59.94i 30 SMPTE 274
50P 50 50i 25 SMPTE 274
29.97P 30 SMPTE 274
25P 25 SMPTE 274
24P 24 SMPTE 274
1280X720 60P 60 SMPTE 296
59.94P 60 SMPTE 296
50P 50 SMPTE 296
AUDIO (ANALOG) OUTPUT
Frequency Range 400Hz, 1KHz
Waveform Sine wave
Number of Channel 2 Channel (R/L)
Level Range 600mVrms FIX
Connector RCA
Special Control Mode FIX / Sweep / Mute / SWAP
SCART OUTPUT
Signal CVBS, Audio, Video(R,G,B), Y/C
Connector SCART
SCAN Group
Storge 100 group (1 group ; 40 step.) Edit: Front Panel, PC
Function Group
Storge 200 group (1 group ; 40 step.) Edit: Front Panel, PC
DATA STORAGE DEVICE
Timing 100 Timings ; Storage : 300 Edit : Front panel, PC
Pattern 400 Patterns ; Storage : 200 Edit : Front panel, PC
External Memory EEPROM 1M Bit Read / Write
OTHERS
AC Input 90 ~ 260 V auto range / 50 ~ 60 Hz auto range
Operation/Storage Temp. +5~+40 deg.C / -20~+60 deg.C
DIMENSION /WEIGHT
H X W X D/ Weight 108 X 406 X 345 (mm) / 5 kgs
* All specifications are subject to change without any notice.
|
